Implementation Details

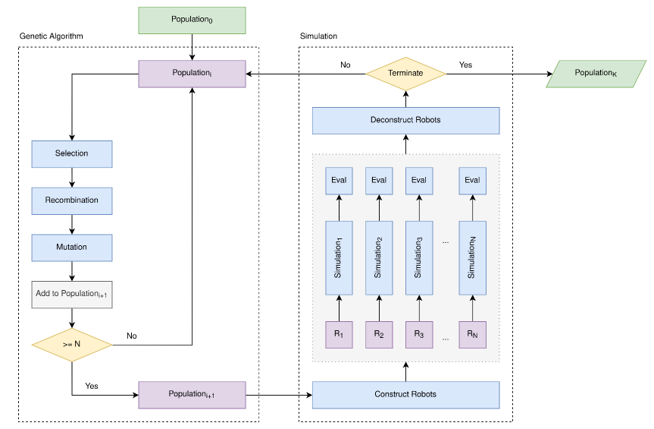

The system architectural overview is illustrated in the following figure:

Architectural overview

Observations

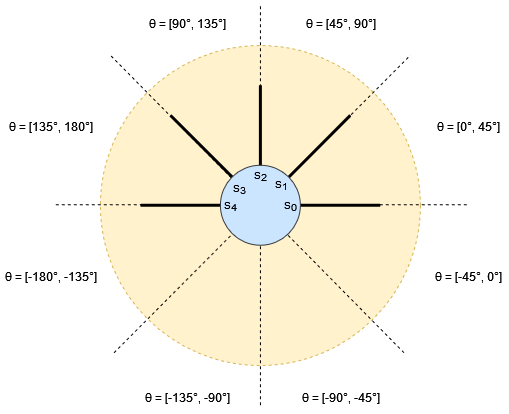

The mobile robot is equipped with five range sensors that can detect obstacles and provide an output of either 1 or 0, depending on whether an obstacle was detected or not, respectively. Moreover, the space around the robot is divided into eight sections of 45 degrees each and it checks in which of these sections the angle to the goal belongs to.

Observation space

A sample input to the controller consists of:

Angle-to-Goal								Sensors
A_0	A_1	A_2	A_3	A_4	A_5	A_6	A_7	S_0	S_1	S_2	S_3	S_4
1	0	0	0	0	0	0	0	0	1	0	0	1

indicating that the angle to the goal lies within the first interval of [0^◦, 45^◦] and that sensors s1 and s4 have detected an obstacle.

Actions

The robot uses the unicycle model. It is provided with a constant linear velocity and the angular velocity is computed by the controller. So, the robot can take eight different actions that correspond to the following angular velocities:

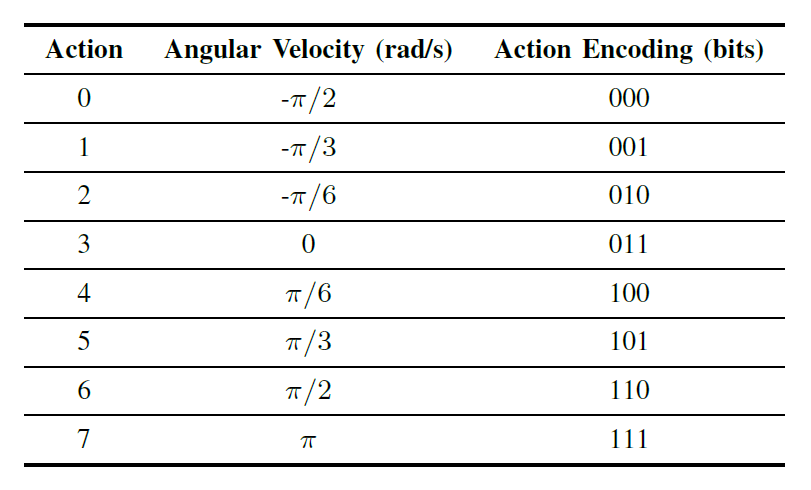

The robot’s actions

The encoding of the actions

Chromosome Encoding

To ensure that the GA chromosome always comprises of a valid solution, the algorithm uses a binary encoding with 2¹³ possible input observations and 2³ possible actions.

The encoding procedure consists of:

Step 1

Assume that the observation ‘0000000100000’ corresponds to the optimal action ‘001’.

E.g., ‘0000000100000’ → ‘001’

Step 2

Convert the observation bit sequence into a decimal value.

(0000000100000)₂= (32)₁₀

So, 32 → ‘001’

This decimal value corresponds to a position in the chromosome.

Step 3

This position encodes the optimal action (consisting of a sequence of 3 bits) for that particular input combination.

So, in the position 32 of the chromosome, the sequence ‘001’ will be present which represents the action to take (action 1).

xxx xxx xxx xxx xxx xxx xxx xxx xxx … 001 … xxx xxx xxx

Genetic Algorithm Elements

For the elements of the GA, the following operations are utilized:

• Selection: Tournament Selection

  Selects the fittest individual with probability p from a tournament size S

• Recombination: Multi-Point Crossover

  Swaps two chromosomes at N different points

• Mutation: Bit Flip Inversion

  Randomly flips M bits with probability p of each bit being flipped

Genetic Algorithm diagram
